New Chip ESP32-S2

mikemoy
Posts: 355
Joined: Fri Jan 12, 2018 9:10 pm

Re: New Chip ESP32-S2

Postby mikemoy » Fri Aug 23, 2019 7:20 pm

brandon wrote:
Fri Jul 19, 2019 7:34 pm
I hope there'll be a new one with ethernet plus PHY and maybe a POE PD controller (the lack of those takes away some of the advantages of a small esp32, by the time they are added you have a big board like PI's ad such). IoT for buildings isn't safe/reliable when it's all exposed on wireless the users can get at, sure for a couple of home devices.

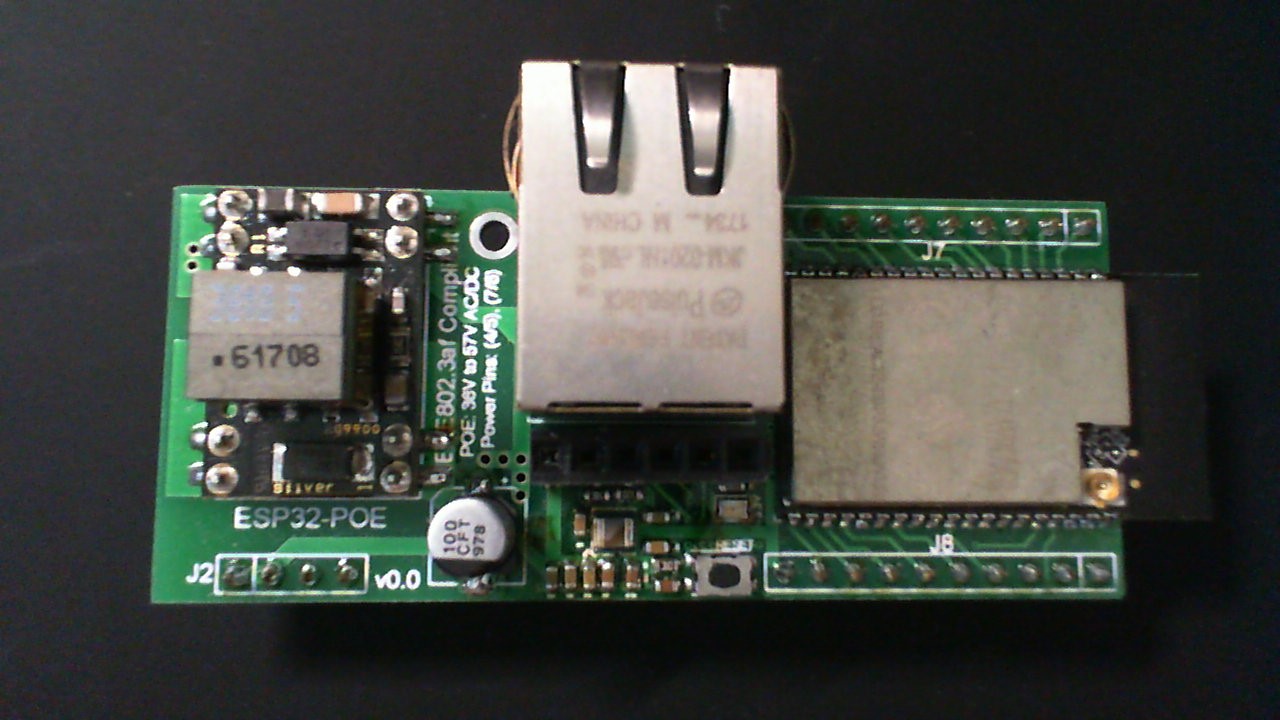

It's still very small even with POE.



WiFive
Posts: 2623
Joined: Tue Dec 01, 2015 7:35 am

Re: New Chip ESP32-S2

Postby WiFive » Fri Aug 23, 2019 10:57 pm

Datasheet hints that it still has CAN

User avatar
rudi ;-)
Posts: 1427
Joined: Fri Nov 13, 2015 3:25 pm

Re: New Chip ESP32-S2

Postby rudi ;-) » Sat Aug 24, 2019 12:56 am

WiFive wrote:
Fri Aug 23, 2019 10:57 pm
Datasheet hints that it still has CAN
WiFive, do you mean

QFDM Modem.png
QFDM Modem.png (49.89 KiB) Viewed 517 times


OFDM PDF

WiKipedia


best wishes
rudi ;-)
Last edited by rudi ;-) on Sun Aug 25, 2019 2:50 am, edited 1 time in total.
-------------------------------------
love it, change it or leave it.
-------------------------------------
問候飛出去的朋友遍全球魯迪

WiFive
Posts: 2623
Joined: Tue Dec 01, 2015 7:35 am

Re: New Chip ESP32-S2

Postby WiFive » Sat Aug 24, 2019 1:59 am

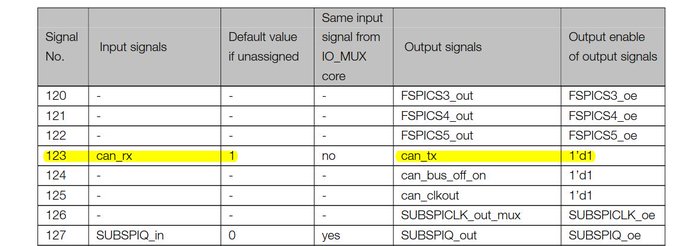

123 can_rx 1 no can_tx 1’d1
124 - - - can_bus_off_on 1’d1
125 - - - can_clkout 1’d1
Last edited by WiFive on Sat Aug 24, 2019 2:00 am, edited 1 time in total.

User avatar
rudi ;-)
Posts: 1427
Joined: Fri Nov 13, 2015 3:25 pm

Re: New Chip ESP32-S2

Postby rudi ;-) » Sat Aug 24, 2019 2:36 am

taken from datasheet:

S.12 ( Note )

..
2.ESP32-S2’s pins SPICS1, SPIHD, SPIWP, SPICS0, SPICLK, SPIQ and SPID are usually
used for connecting the embedded flash and SRAM, and are not recommended for other uses.
..


there are plan's to get an ESP32-S2 with eMbeddedFlash i read out :)

from 2.1.3
..up to 1 GB of external flash and SRAM can be supported.

i think there must someone edit this line , it reads SRAM up to 1GB can be supported?
really? ( i am thinking 128MB )

ups...



123 can_rx 1 no can_tx 1’d1


we got ESP32-S2 CAN?
mistake or CAN transceiver ? CAN Controller ?

best wishes
rudi ;-)

edit:
did not read your post ( had open the datasheet for read and put things to these post )
i think we have CAN transceiver then - perhabs controller .. or bad - mistake ?
-------------------------------------
love it, change it or leave it.
-------------------------------------
問候飛出去的朋友遍全球魯迪

User avatar
rudi ;-)
Posts: 1427
Joined: Fri Nov 13, 2015 3:25 pm

Re: New Chip ESP32-S2

Postby rudi ;-) » Sat Aug 24, 2019 2:46 am

BLE ? BT ?

203 pcmfsync_in 0 no bt_audio0_irq 1’d1
204 pcmclk_in 0 no bt_audio1_irq 1’d1
205 pcmdin 0 no bt_audio2_irq 1’d1
206 rw_wakeup_req 0 no ble_audio0_irq 1’d1
207 - - - ble_audio1_irq 1’d1
208 - - - ble_audio2_irq 1’d1
209 - - - pcmfsync_out pcmfsync_en
210 - - - pcmclk_out pcmclk_en
211 - - - pcmdout pcmdout_en
212 - - - ble_audio_sync0_p 1’d1
213 - - - ble_audio_sync1_p 1’d1
214 - - - ble_audio_sync2_p 1’d1

wait for the revision

..
best wishes
rudi ;-)
-------------------------------------
love it, change it or leave it.
-------------------------------------
問候飛出去的朋友遍全球魯迪

User avatar
rudi ;-)
Posts: 1427
Joined: Fri Nov 13, 2015 3:25 pm

Re: New Chip ESP32-S2

Postby rudi ;-) » Sat Aug 24, 2019 10:21 pm

WiFive wrote:
Sat Aug 24, 2019 1:59 am
123 can_rx 1 no can_tx 1’d1
124 - - - can_bus_off_on 1’d1
125 - - - can_clkout 1’d1

yes!

( or old/standard code leftovers )

:mrgreen:

best wishes
rudi ;-)
-------------------------------------
love it, change it or leave it.
-------------------------------------
問候飛出去的朋友遍全球魯迪

WiFive
Posts: 2623
Joined: Tue Dec 01, 2015 7:35 am

Re: New Chip ESP32-S2

Postby WiFive » Sun Aug 25, 2019 1:55 am

rudi ;-) wrote:
Sat Aug 24, 2019 10:21 pm
yes!
No
https://github.com/espressif/esp-idf/bl ... /soc/soc.h

Let's try to keep the thread clean of guessing.

OFDM modem is just part of wifi.

User avatar
rudi ;-)
Posts: 1427
Joined: Fri Nov 13, 2015 3:25 pm

Re: New Chip ESP32-S2

Postby rudi ;-) » Sun Aug 25, 2019 3:01 am

WiFive wrote:
Sun Aug 25, 2019 1:55 am
rudi ;-) wrote:
Sat Aug 24, 2019 10:21 pm
yes!
No
https://github.com/espressif/esp-idf/bl ... /soc/soc.h

Let's try to keep the thread clean of guessing.

OFDM modem is just part of wifi.
actually were in the ESP32S2 (LX7) future repo
even the ESP32 (LX6) soc header, he grabbed.

the over-zealous made blind and
he reached for the stars too fast
and then he moved lonely ..

QFDM / OFDM
therefore, both thought trains posted
i hoped so. hope dies at last.
( SDR example )

ok approval -

best wishes
rudi ;-)
-------------------------------------
love it, change it or leave it.
-------------------------------------
問候飛出去的朋友遍全球魯迪

User avatar
rudi ;-)
Posts: 1427
Joined: Fri Nov 13, 2015 3:25 pm

Re: New Chip ESP32-S2

Postby rudi ;-) » Mon Sep 02, 2019 9:52 am

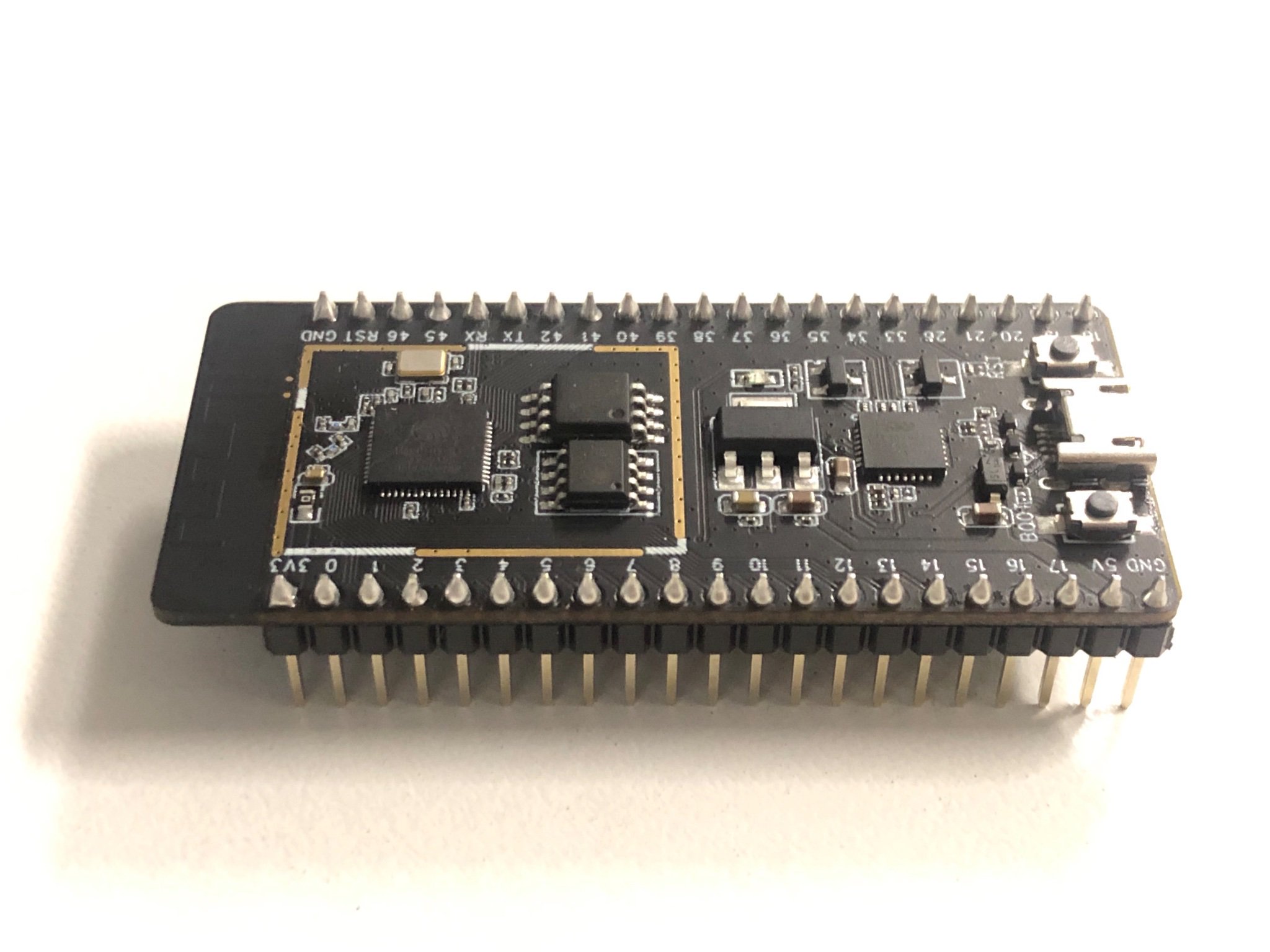

hi folks

spotted in the 'drumroll' scene:

the 56 pin ESP32-S2

best wishes
rudi ;-)
-------------------------------------
love it, change it or leave it.
-------------------------------------
問候飛出去的朋友遍全球魯迪
