ESP32 with small PCB searched.

ROB_87
Posts: 1
Joined: Mon Jul 31, 2017 4:35 pm

ESP32 with small PCB searched.

Postby ROB_87 » Mon Jul 31, 2017 4:45 pm

Hi,

I'm Robert from germany. I searching a ready to use small PCB with a ESP32 on it. Do you have a advice where I can find such?
It ist for a RC-Car(1:24) project.

It isn't necessary to have all pins outside, because I would like to use a bus system.

https://de.aliexpress.com/store/product ... 53522.html This looks good but it has a USB-Chip on it, witch I don't need i think.

Thank's for your help.


Robert

ESP_Sprite
Posts: 8926
Joined: Thu Nov 26, 2015 4:08 am

Re: ESP32 with small PCB searched.

Postby ESP_Sprite » Tue Aug 01, 2017 1:36 am

Hello Robert. Have you already looked at the modules that do not have a DIP pinout? For example, the module you mentioned is based on the WROOM32 module, which is also obtainable separately.

BuddyCasino
Posts: 263
Joined: Sun Jun 19, 2016 12:00 am

Re: ESP32 with small PCB searched.

Postby BuddyCasino » Tue Aug 01, 2017 7:53 am

Thats the smallest that I own:

https://www.tindie.com/products/onehors ... ent-board/

The photos don't really do it justice, its amazingly small while still full-featured. Not cheap though. Remember you'll have to set the flash to DOUT mode.

lmarmisa
Posts: 9
Joined: Tue Jun 27, 2017 12:20 pm

Re: ESP32 with small PCB searched.

Postby lmarmisa » Tue Aug 01, 2017 8:53 am

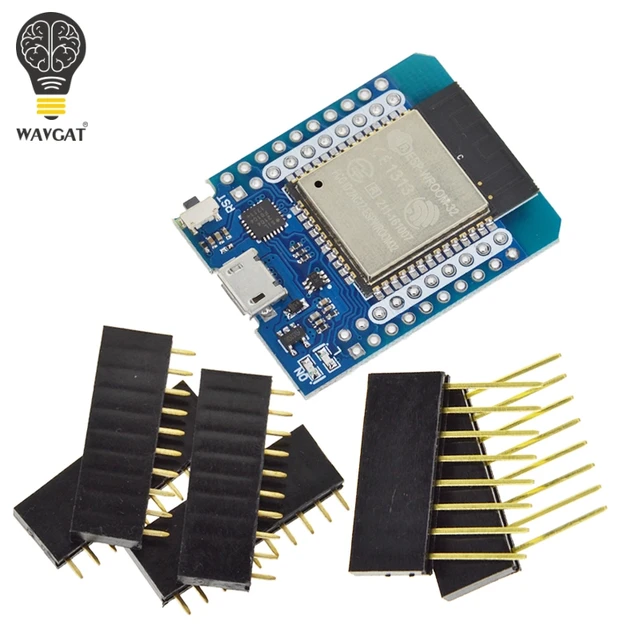

I am waiting for a module like this:

https://www.aliexpress.com/item/Hot-sel ... 40089.html

I placed the order a few days ago.

User avatar
rudi ;-)
Posts: 1698
Joined: Fri Nov 13, 2015 3:25 pm

Re: ESP32 with small PCB searched.

Postby rudi ;-) » Tue Aug 01, 2017 11:40 am

lmarmisa wrote:I am waiting for a module like this:
https://www.aliexpress.com/item/Hot-sel ... 40089.html
nice - you know, that the modul can't connect to a breadboard?
( double pinheader pins left and right are nice but they are different signals from neighboring pin)

best wishes
rudi ;-)
-------------------------------------
love it, change it or leave it.
-------------------------------------
問候飛出去的朋友遍全球魯迪

BuddyCasino
Posts: 263
Joined: Sun Jun 19, 2016 12:00 am

Re: ESP32 with small PCB searched.

Postby BuddyCasino » Tue Aug 01, 2017 11:59 am

nice - you know, that the modul can't connect to a breadboard?
( double pinheader pins left and right are nice but they are different signals from neighboring pin)
Yep, they look nice at first sight but I never use them because of this.

Cellie
Posts: 42
Joined: Sat Feb 27, 2016 9:47 pm

Re: ESP32 with small PCB searched.

Postby Cellie » Tue Aug 01, 2017 12:03 pm


sintech
Posts: 27
Joined: Wed Dec 14, 2016 2:54 pm

Re: ESP32 with small PCB searched.

Postby sintech » Tue Aug 01, 2017 12:19 pm

rudi ;-) wrote: nice - you know, that the modul can't connect to a breadboard?
( double pinheader pins left and right are nice but they are different signals from neighboring pin)
You can solder two outer rows of pins on bottom side of board and two inner rows on top ;)

lmarmisa
Posts: 9
Joined: Tue Jun 27, 2017 12:20 pm

Re: ESP32 with small PCB searched.

Postby lmarmisa » Tue Aug 01, 2017 1:24 pm

rudi ;-) wrote:
lmarmisa wrote:I am waiting for a module like this:
https://www.aliexpress.com/item/Hot-sel ... 40089.html
nice - you know, that the modul can't connect to a breadboard?
( double pinheader pins left and right are nice but they are different signals from neighboring pin)

best wishes
rudi ;-)
Yes, I know. I will use a PCB solution. I want to explore low power consumption ESP32 designs using batteries, deep sleep and BLE.

User avatar
rudi ;-)
Posts: 1698
Joined: Fri Nov 13, 2015 3:25 pm

Re: ESP32 with small PCB searched.

Postby rudi ;-) » Tue Aug 01, 2017 1:46 pm

sintech wrote:
rudi ;-) wrote: nice - you know, that the modul can't connect to a breadboard?
( double pinheader pins left and right are nice but they are different signals from neighboring pin)
You can solder two outer rows of pins on bottom side of board and two inner rows on top ;)
ah :idea: one row it wants to be put on the breadboard and the other row put from above
very nice :D this modul becomes own special character.
then perhabs better, we connect wire from the board to the breadboard ?
Or we will take an adapter hole grid board for soldering the breakout adapter board
and then we wire the hole grid board to the breadboard -
i see - this is a good exercise for beginners :mrgreen:
(After the exercise then:: we make then an adapter board for the hole grid board that fits on a breadboard too)
-------------------------------------
love it, change it or leave it.
-------------------------------------
問候飛出去的朋友遍全球魯迪
