How to use ESP-WROOM-32 to send wireless TX and RX commands from a PIC?

Nmaster88
Posts: 1
Joined: Fri Aug 30, 2019 9:05 am

How to use ESP-WROOM-32 to send wireless TX and RX commands from a PIC?

Postby Nmaster88 » Fri Aug 30, 2019 9:12 am

Hello, i'm new to this community and to ESP.

About my specific question, i want to have the possibility to send the commands of a PIC in a way that it's wireless and i thought it would be a good idea to use a ESP WROOM 32.

In the datasheet it has the following schematic in attachment.

Then i came up with what i think its needed for my case (i've seen this schematic somewhere on the WEB)
the image is in attachment.

Or do i need the JTAG part?
Attachments

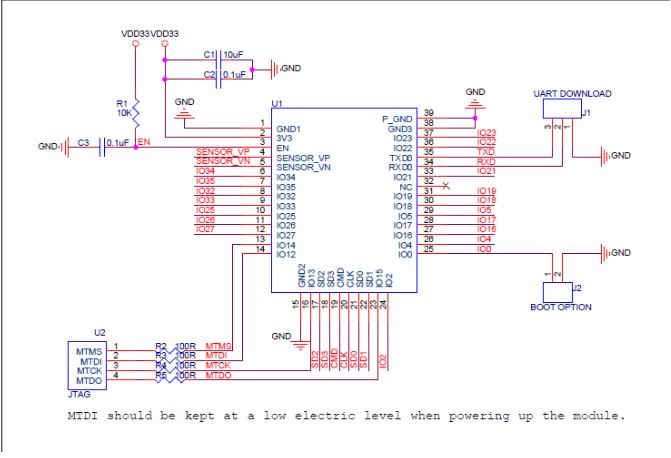

schematic from datasheet of ESP WROOM 32

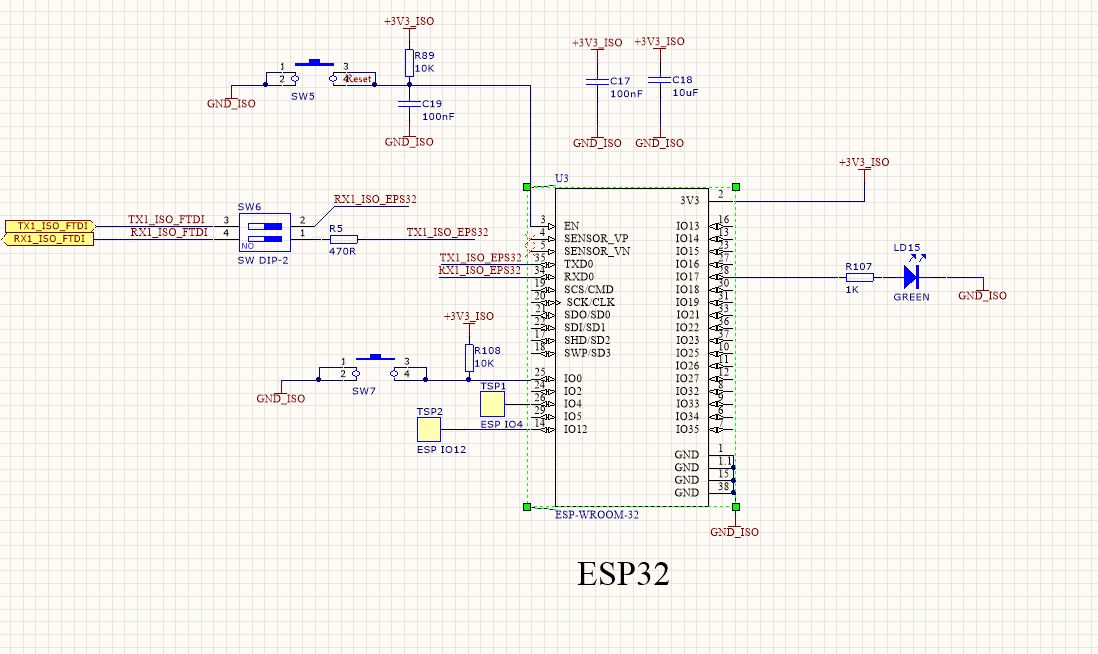

My implementation
