Please check Diagram

Post Reply
wmughal
Posts: 1
Joined: Wed Mar 18, 2026 6:24 am

Please check Diagram

Postby wmughal » Wed Mar 18, 2026 6:27 am

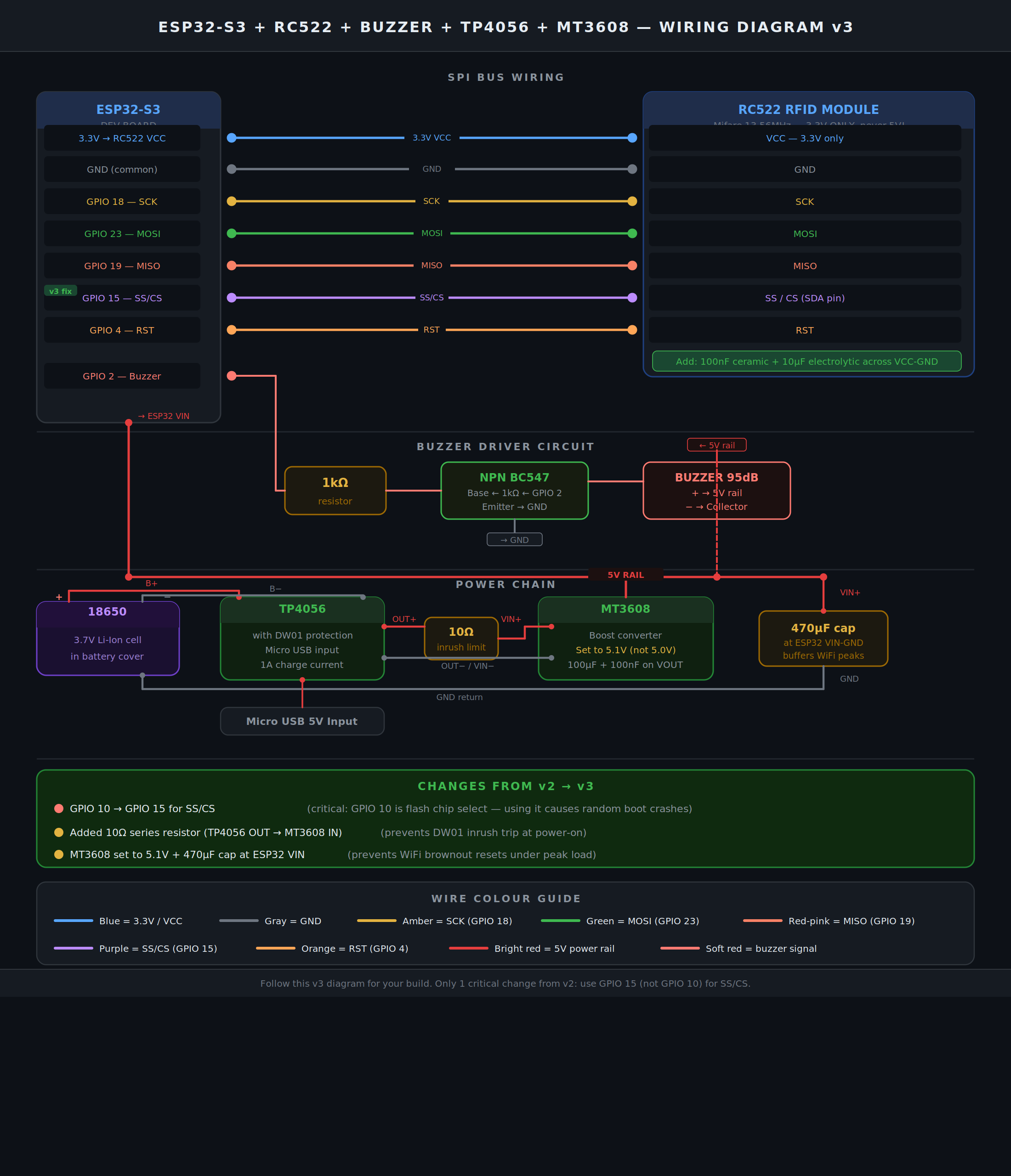

please check below diagram generated by cluade is this ok and should i follow it or any changes required please guide i neve use esp32 before.
Attachments
WhatsApp Image 2026-03-18 at 4.28.27 AM.jpeg
WhatsApp Image 2026-03-18 at 4.28.27 AM.jpeg (89.58 KiB) Viewed 64 times
WhatsApp Image 2026-03-18 at 4.28.27 AM (1).jpeg
WhatsApp Image 2026-03-18 at 4.28.27 AM (1).jpeg (89.58 KiB) Viewed 64 times
Top
Sprite
Espressif staff
Espressif staff
Posts: 10596
Joined: Thu Nov 26, 2015 4:08 am

Re: Please check Diagram

Postby Sprite » Thu Mar 19, 2026 2:54 am

No it's not, GenAI at this moment sucks for schematic stuff. Please do us all a favour, read up on the electronics side and propose your own schematic and we'll see what we can improve.
Top
